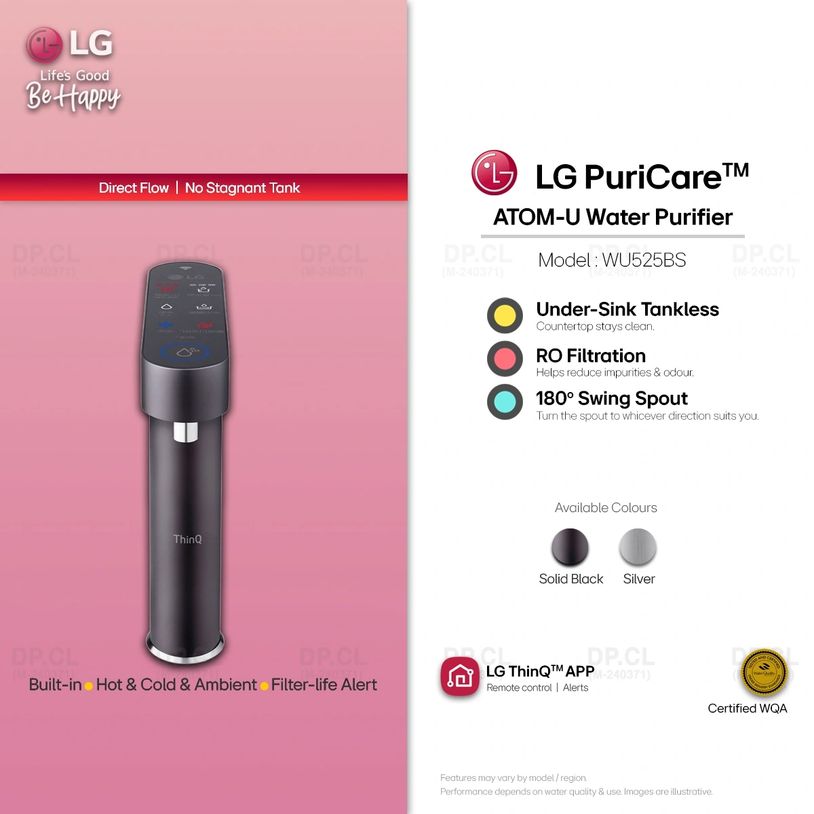

LG PuriCare™ ATOM-U Water Purifier, Solid Black.

The high-temperature sanitization function of the water pipes automatically sanitizes the pipes through which cold, hot, and purified water flows once a week. It takes about 30 minutes including the cold water module once every 4 weeks.

When sanitizing the spout, please place a container of 500 ml or larger under the spout as hot water will be dispensed, press and hold the Sanitize Spout button for at least 3 seconds, and then press the Dispense button.

You can check the sanitization history through the LG ThinQ app. If you have turned off the high-temperature water pipe sanitization schedule function in the LG ThinQ app, high-temperature water pipe sanitization will not be automatically activated.

*The scope of high-temperature sanitization is limited to the water pipes from the filter to the dispensing valve.

1. Tap the water purifier icon in the LG ThinQ App.

2. Select the '>' icon in the high-temperature sanitization window or select "Schedule high-temperature water pipe sanitization' in the Settings.

3. Tap the '>' icon in Schedule Sanitization.

4. Set the desired scheduled time and tap the Save button.

If the valve at the source water supply or the water supply valve of the water tap is closed, the water pipe sanitization function will not work. Please open the source water valve or water supply valve.

To install the faucet, you will need to drill a 28 mm hole in your sink or countertop, with enough room for the deco ring (52 mm) and fixings (60 mm).

The underside of the sink requires about 10 cm of space in addition to the product size (W 170 mm x D 410 mm x H 420 mm).

1. Tap the water purifier icon in the LG ThinQ App.

2. Tap the 'ⓘ' icon in the top right corner of the screen, then tap the Settings window.

3. On the Settings page, select 'Product sound settings' to turn the water purifier's sounds on or off. You cannot adjust the volume.

1. Tap the water purifier icon in the LG ThinQ App.

2. Tap the 'ⓘ' icon in the top right corner of the screen, then tap the Settings window.

3. On the Settings page, select 'Product sound settings' to turn the water purifier's sounds on or off. You cannot adjust the volume.

The drinking water faucet is touch-operated, with both the picture and text areas being touch-sensitive.

This function alerts you when it is time to replace your filter when your water usage is nearing the effective water level.

You can continue to use the product as normal for a while even if the lamp color changes, but please replace the filter as soon as possible for cleaner water.

The faucet is an electronic device which should not be cleaned by pouring water on it but by wiping it with a dry cloth and a small amount of water.

Please do not use a scrubber to clean it as it may scratch the exterior or erase the printed text.

The faucet is cleaned when we visit. If you wish to clean it, you can wipe the outside with a soft cloth and clean the inside with the brush provided when we visit or a commercially available large-sized interdental toothbrush.

(After cleaning, drain and discard a certain amount of water (about 30 seconds) before use.)
